S-24C02B 2-WIRE CMOS SERIAL E2PROM

1 NC No Connection∗1 2 NC No Connection∗1 3 NC No Connection∗1 4 GND Ground 5 SDA Serial data input/output 6 SCL Serial clock input Write Protection pin 7 WP Connected to Vcc: Protection valid Connected to GND: Protection invalid 8 VCC Power supply ∗1. Connect to GND or Vcc. Remark.

S-24C02B Features

* Low power consumption Standby : 1.0 µA Max. (VCC=5.5 V) Oprating : 0.8 mA Max. (VCC=5.5 V) 0.3 mA Max. (Vcc=3.3 V)

* Wide operating voltage range : 2.0 to 5.5

* Page write : 8 bytes / page (S-24C01B/02B) 16 bytes / page (S-24C04B)

* Sequential read

S-24C01B-Seiko.pdf

This datasheet PDF includes multiple part numbers: S-24C02B, S-24C01B. Please refer to the document for exact specifications by model.

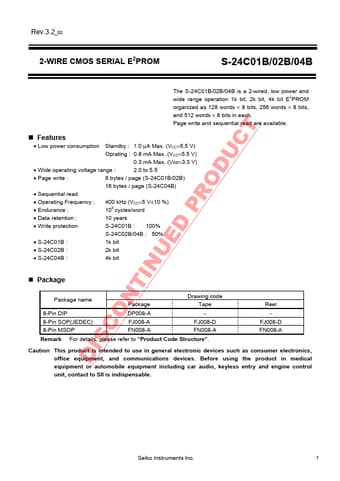

S-24C02B Datasheet Preview Page 2 S-24C02B Datasheet Preview Page 3
