S-24C02C, S-24C01C - 2-WIRE SERIAL E2PROM

Seiko

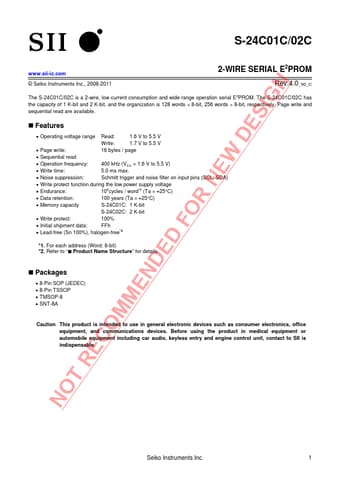

S-24C02C Datasheet Preview — This datasheet PDF includes multiple part numbers: S-24C02C, S-24C01C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	S-24C02C, S-24C01C
Manufacturer	Seiko
File Size	0.97 MB
Description	2-WIRE SERIAL E2PROM
Datasheet	S-24C01C-Seiko.pdf
Note	This datasheet PDF includes multiple part numbers: S-24C02C, S-24C01C. Please refer to the document for exact specifications by model.

S-24C02C Product details

Description

Slave address input Slave address input Slave address input 4 GND Ground 5 SDA 1 Serial data I/O 6 SCL 1 Serial clock input Write protect input 7 WP Connected to VCC: Protection valid Open or connected to GND: Protection invalid 8 VCC Power supply 1. 1 A1 1 A2 1 Description Slave address input Slave address input Slave address input 4 GND Ground 5 SDA 1 Serial data I/O 6 SCL

Features

Operating voltage range Read: 1.6 V to 5.5 V Write: 1.7 V to 5.5 V.
Page write: 16 bytes / page.
Sequential read.
Operation frequency:.
Write time: 400 kHz (VCC = 1.6 V to 5.5 V) 5.0 ms max.
Noise suppression: Schmitt trigger and noise filter on input pins (SCL, SDA).
Write protect function during the low power supply voltage.
Endurance: 106cycles / word.
1 (Ta = +25°C).
Data retention: 100 years.
