2N2640DCSM Datasheet - Seme LAB

2N2640DCSM Dual Bipolar NPN Devices

2.54 ± 0.13 (0.10 ± 0.005) 0.64 ± 0.06 (0.025 ± 0.003) 4.32 ± 0.13 (0.170 ± 0.005) 2N2640DCSM Dimensions in mm (inches). 2.29 ± 0.20 (0.09 ± 0.008) 1.65 ± 0.13 (0.065 ± 0.005) 1.40 ± 0.15 (0.055 ± 0.006) Dual Bipolar NPN Devices in a hermetically sealed LCC2 Ceramic Surface Mount Package for High Reliability Applications 23 1 A 6 4 5 0.23 rad. (0.009) 6.22 ± 0.13 (0.245 ± 0.005) A = 1.27 ± 0.13 (0.05 ± 0.005) LCC2 (MO-041BB) Pinouts Pin 1 Collector 1 Pin 2 Base 1.

2N2640DCSM-SemeLAB.pdf

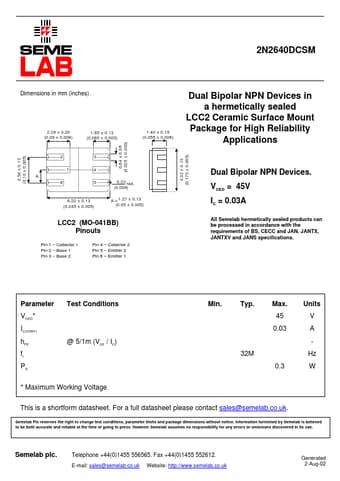

Preview of 2N2640DCSM PDF

Datasheet Details

Part number:

2N2640DCSM

Manufacturer:

Seme LAB

File Size:

9.82 KB

Description:

Dual bipolar npn devices.
