2N2604 Datasheet - Microsemi Corporation

2N2604 (2N2604 / 2N2605) PNP SILICON LOW POWER TRANSISTOR

www.DataSheet4U.com TECHNICAL DATA PNP SILICON LOW POWER TRANSISTOR Qualified per MIL-PRF-19500/354 Devices 2N2604 2N2605 Qualified Level JAN, JANTX JANTXV MAXIMUM RATINGS Ratings Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Total Power Dissipation Symbol VCBO VCEO VEBO IC PT TJ, Tstg Symbol RθJC 2N2604 80 2N2605 70 Units Vdc Vdc Vdc mAdc mW/0C 0 C Unit C/mW @ TA = +250C(1) Operating & Storage Junction Temperature Range 60 6.0 30 400 -65 to +20.

2N2604_MicrosemiCorporation.pdf

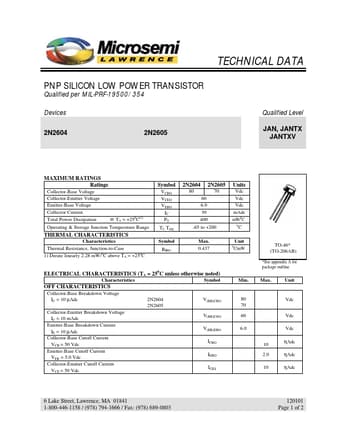

Preview of 2N2604 PDF
2N2604 Datasheet Preview Page 2

Datasheet Details

Part number:

2N2604

Manufacturer:

Microsemi ↗ Corporation

File Size:

76.61 KB

Description:

(2n2604 / 2n2605) pnp silicon low power transistor.
