2N2605 AMPLIFIER TRANSISTOR

2N2605 JAN, JTX AVAILABLE CASE 26-03, STYLE 1 TO-46 (TO-206AB) AMPLIFIER TRANSISTOR PNP SILICON Refer to 2N3962 for graphs. MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Continuous Total Device Dissipation (a T/ = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Symbol vCEO v CBO v EBO 'C PD TJ- Tstg Value 45 60 6 30 400 2.28 -65 to +200 ELECTRICAL CHARACTERISTICS (TA 25°C unless otherwise noted.

2N2605 Datasheet (31.38 KB)

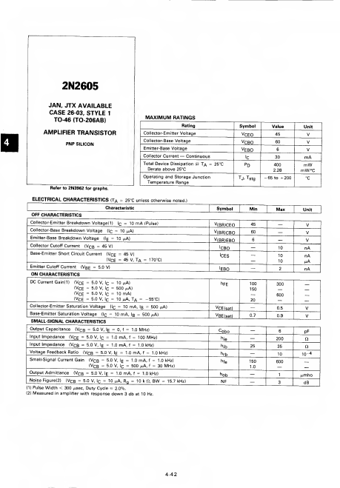

2N2605 Datasheet Preview — Preview of 2N2605 PDF

Datasheet Details

Part number:

2N2605

Manufacturer:

Motorola

File Size:

31.38 KB

Description:

Amplifier transistor.
