2N3700DCSM - HIGH VOLTAGE / MEDIUM POWER / NPN DUAL TRANSISTOR

Datasheet Summary

Features

1.40 ± 0.15 (0.055 ± 0.006) 0.64 ± 0.08 (0.025 ± 0.003) 2.29 ± 0.20 (0.09 ± 0.008) 1.65 ± 0.13 (0.065 ± 0.005).
DUAL.

Seme LAB

📥 Download Datasheet

Datasheet Details

Part number	2N3700DCSM
Manufacturer	Seme LAB
File Size	22.66 KB
Description	HIGH VOLTAGE / MEDIUM POWER / NPN DUAL TRANSISTOR
Datasheet	2N3700DCSM Datasheet
Additional preview pages of the 2N3700DCSM datasheet.

📁 Similar Datasheet

2N3700 - Silicon Planar Epitaxial NPN transistor (STMicroelectronics)
2N3700 - Low Power Transistor (ON Semiconductor)
2N3700 - LOW POWER NPN SILICON TRANSISTOR (Microsemi Corporation)
2N3700 - SILICON NPN TRANSISTOR (TT)
2N3700 - Bipolar Transistor (Multicomp)
2N3700 - NPN Low Power Silicon Transistor (MA-COM)
2N3700 - NPN TRANSISTORS (Central Semiconductor)
2N3700 - NPN Low Power Silicon Transistor (VPT)
2N3700 - NPN SILICON PLANAR EPITAXIAL TRANSISTORS (CDIL)
2N3700 - SILICON NPN TRANSISTOR (TT)

Other Datasheets by Seme LAB

2N3713 - Bipolar NPN Device
2N3716 - Bipolar NPN Device
2N3716X - NPN SILICON EPIBASE TRANSISTOR
2N3720 - PNP SILICON TRANSISTOR
2N3724 - Bipolar NPN Device
2N3725 - NPN SWITCHING TRANSISTOR
2N3734 - Bipolar NPN Device
2N3738 - POWER TRANSISTORS

Full PDF Text Transcription

Click to expand full text

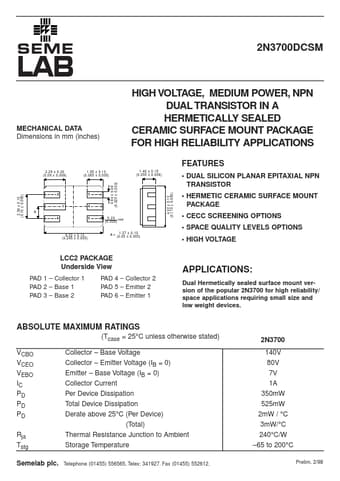

LAB MECHANICAL DATA Dimensions in mm (inches) SEME 2N3700DCSM HIGH VOLTAGE, MEDIUM POWER, NPN DUAL TRANSISTOR IN A HERMETICALLY SEALED CERAMIC SURFACE MOUNT PACKAGE FOR HIGH RELIABILITY APPLICATIONS FEATURES 1.40 ± 0.15 (0.055 ± 0.006) 0.64 ± 0.08 (0.025 ± 0.003) 2.29 ± 0.20 (0.09 ± 0.008) 1.65 ± 0.13 (0.065 ± 0.005) • DUAL SILICON PLANAR EPITAXIAL NPN TRANSISTOR 4.32 ± 0.13 (0.170 ± 0.005) 2.54 ± 0.13 (0.10 ± 0.005) 2 1 3 4 5 • HERMETIC CERAMIC SURFACE MOUNT PACKAGE • CECC SCREENING OPTIONS • SPACE QUALITY LEVELS OPTIONS • HIGH VOLTAGE A 6 0.23 rad. (0.009) 1.27 ± 0.13 (0.05 ± 0.005) 6.22 ± 0.13 (0.245 ± 0.
