2N3701 - NPN TRANSISTORS

This page provides the datasheet information for the 2N3701, a member of the 2N3700 NPN TRANSISTORS family.

Datasheet Summary

Description

The CENTRAL SEMICONDUCTOR 2N3700 and 2N3701 are silicon NPN transistors designed for high current general purpose applications.

📥 Download Datasheet

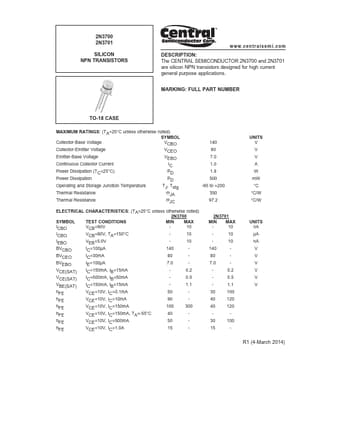

Datasheet preview – 2N3701

Datasheet Details

Part number 2N3701
Manufacturer Central Semiconductor
File Size 297.66 KB
Description NPN TRANSISTORS
Datasheet download datasheet 2N3701 Datasheet
Additional preview pages of the 2N3701 datasheet.

📁 Similar Datasheet

  • 2N3701 - NPN SILICON PLANAR EPITAXIAL TRANSISTORS (CDIL)
  • 2N3700 - Silicon Planar Epitaxial NPN transistor (STMicroelectronics)
  • 2N3700 - Low Power Transistor (ON Semiconductor)
  • 2N3700 - LOW POWER NPN SILICON TRANSISTOR (Microsemi Corporation)
  • 2N3700 - SILICON NPN TRANSISTOR (TT)
  • 2N3700 - Bipolar Transistor (Multicomp)
  • 2N3700 - NPN Low Power Silicon Transistor (MA-COM)
  • 2N3700 - NPN Low Power Silicon Transistor (VPT)
  • 2N3700 - NPN SILICON PLANAR EPITAXIAL TRANSISTORS (CDIL)
  • 2N3700 - SILICON NPN TRANSISTOR (TT)
Other Datasheets by Central Semiconductor

Full PDF Text Transcription

Click to expand full text
2N3700 2N3701 SILICON NPN TRANSISTORS w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR 2N3700 and 2N3701 are silicon NPN transistors designed for high current general purpose applications. MARKING: FULL PART NUMBER TO-18 CASE MAXIMUM RATINGS: (TA=25°C unless otherwise noted) SYMBOL Collector-Base Voltage VCBO Collector-Emitter Voltage VCEO Emitter-Base Voltage VEBO Continuous Collector Current IC Power Dissipation (TC=25°C) PD Power Dissipation PD Operating and Storage Junction Temperature TJ, Tstg Thermal Resistance ΘJA Thermal Resistance ΘJC 140 80 7.0 1.0 1.8 500 -65 to +200 350 97.
