2N3700HR - NPN transistor

Datasheet Summary

Description

The 2N3700HR is a bipolar transistor able to operate under severe environment conditions and radiation exposure providing high immunity to total ionizing dose (TID).

Features

VCEO IC(max. ) 80 V 1A.
Hermetic packages.
ESCC qualified.
100 krad hFE at 10 V, 150 mA > 100 Tj(max. ) 200 °C.

Datasheet Details

Part number	2N3700HR
Manufacturer	STMicroelectronics
File Size	244.44 KB
Description	NPN transistor
Datasheet	2N3700HR Datasheet
Additional preview pages of the 2N3700HR datasheet.

📁 Similar Datasheet

2N3700 - Low Power Transistor (ON Semiconductor)

2N3700 - LOW POWER NPN SILICON TRANSISTOR (Microsemi Corporation)

2N3700 - SILICON NPN TRANSISTOR (TT)

2N3700 - Bipolar Transistor (Multicomp)

2N3700 - NPN Low Power Silicon Transistor (MA-COM)

2N3700 - NPN TRANSISTORS (Central Semiconductor)

2N3700 - NPN Low Power Silicon Transistor (VPT)

2N3700 - NPN SILICON PLANAR EPITAXIAL TRANSISTORS (CDIL)

2N3700 - SILICON NPN TRANSISTOR (TT)

2N3700DCSM - HIGH VOLTAGE / MEDIUM POWER / NPN DUAL TRANSISTOR (Seme LAB)

Full PDF Text Transcription

Click to expand full text

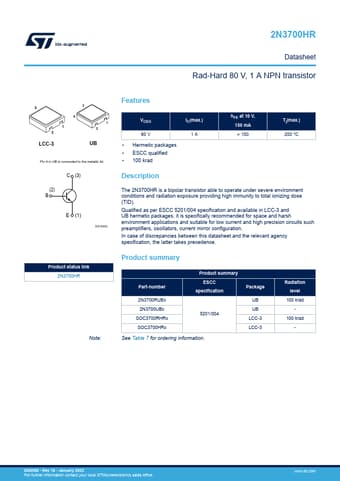

2N3700HR Datasheet Rad-Hard 80 V, 1 A NPN transistor 3 1 2 LCC-3 3 4 1 2 UB Pin 4 in UB is connected to the metallic lid. C (3) (2) B E (1) DS10450 Product status link 2N3700HR Note: Features VCEO IC(max.) 80 V 1A • Hermetic packages • ESCC qualified • 100 krad hFE at 10 V, 150 mA > 100 Tj(max.) 200 °C Description The 2N3700HR is a bipolar transistor able to operate under severe environment conditions and radiation exposure providing high immunity to total ionizing dose (TID). Qualified as per ESCC 5201/004 specification and available in LCC-3 and UB hermetic packages, it is specifically recommended for space and harsh environment applications and suitable for low current and high precision circuits such preamplifiers, oscillators, current mirror configuration.
