2N3019HR - Hi-Rel NPN bipolar transistor

Datasheet Summary

Description

The 2N3019HR is a silicon planar epitaxial NPN transistor in a TO-39 package.

It is specifically designed for aerospace Hi-Rel applications, and ESCC qualified in accordance with the 5201-003 specification.

Features

  • BVCEO IC (max) HFE at 10 V - 150 mA Operating temperature range 80 V 1A > 100 -65°C to +200°C.
  • Hi-Rel NPN bipolar transistor Linear gain characteristics ESCC qualified European preferred part list - EPPL Radiation level: lot specific total dose contact marketing for specified level Figure 1. Internal schematic diagram TO-39.

📥 Download Datasheet

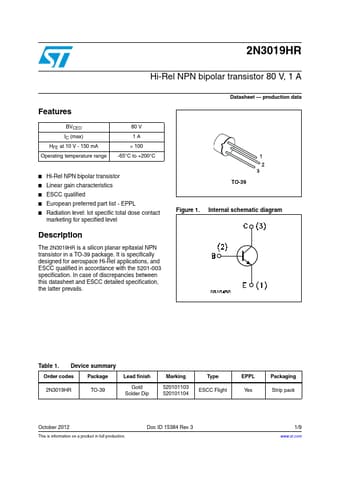

Datasheet preview – 2N3019HR
