2N3019S-M - TRANSISTOR

📥 Download Datasheet

Datasheet preview – 2N3019S-M

Datasheet Details

Part number 2N3019S-M
Manufacturer DSI
File Size 78.31 KB
Description TRANSISTOR
Datasheet download datasheet 2N3019S-M Datasheet
Additional preview pages of the 2N3019S-M datasheet.

📁 Similar Datasheet

  • 2N3019S - LOW POWER NPN SILICON TRANSISTOR (Microsemi)
  • 2N3019S - NPN Low Power Silicon Transistor (VPT)
  • 2N3019S - Low Power Transistor (ON Semiconductor)
  • 2N3019 - NPN medium power transistor (NXP)
  • 2N3019 - SMALL SIGNAL NPN TRANSISTOR (STMicroelectronics)
  • 2N3019 - NPN SILICON TRANSISTOR (Seme LAB)
  • 2N3019 - LOW POWER NPN SILICON TRANSISTOR (Microsemi)
  • 2N3019 - NPN Low Power Silicon Transistor (VPT)
  • 2N3019 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • 2N3019 - Silicon NPN Transistor (NTE)
Other Datasheets by DSI

    Full PDF Text Transcription

    Click to expand full text

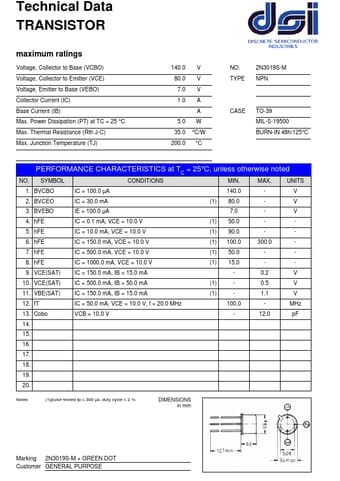

    Technical Data TRANSISTOR maximum ratings Voltage, Collector to Base (VCBO) Voltage, Collector to Emitter (VCE) Voltage, Emitter to Base (VEBO) Collector Current (IC) Base Current (IB) Max. Power Dissipation (PT) at TC = 25 °C Max. Thermal Resistance (Rth J-C) Max. Junction Temperature (TJ) empty 140.0 V 80.0 V 7.0 V 1.0 A empty A 5.0 W 35.0 °C/W 200.0 °C empty empty NO. TYPE empty empty CASE empty empty 2N3019S-M NPN empty empty TO-39 MIL-S-19500 BURN-IN 48h/125°C PERFORMANCE CHARACTERISTICS at T = 25°C, unless otherwise noted C NO. SYMBOL CONDITIONS MIN. MAX. UNITS 1. BVCBO IC = 100.0 µA 140.0 - V 2. BVCEO IC = 30.0 mA (1) 80.0 - V 3. BVEBO IE = 100.0 µA 7.0 - V 4. hFE IC = 0.1 mA, VCE = 10.0 V (1) 50.0 - - 5. hFE IC = 10.0 mA, VCE = 10.
