LAB
MECHANICAL DATA Dimensions in mm (inches)
SEME

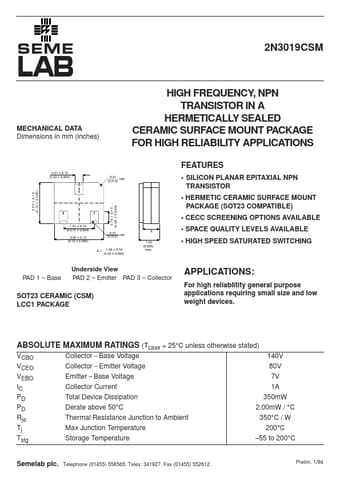

2N3019CSM
HIGH FREQUENCY, NPN TRANSISTOR IN A HERMETICALLY SEALED CERAMIC SURFACE MOUNT PACKAGE FOR HIGH RELIABILITY APPLICATIONS
FEATURES
0.51 ± 0.10 (0.02 ± 0.004)
0.31 rad. (0.012)
• SILICON PLANAR EPITAXIAL NPN TRANSISTOR • HERMETIC CERAMIC SURFACE MOUNT PACKAGE (SOT23 COMPATIBLE) • CECC SCREENING OPTIONS AVAILABLE
A 1.40 (0.055) max.
2.54 ± 0.13 (0.10 ± 0.005)
3
2
1
1.91 ± 0.10 (0.075 ± 0.004) 3.05 ± 0.13 (0.12 ± 0.005)
0.76 ± 0.15 (0.03 ± 0.006)
0.31 rad. (0.012)
• SPACE QUALITY LEVELS AVAILABLE • HIGH SPEED SATURATED SWITCHING
A = 1.02 ± 0.10 (0.04 ± 0.
