2N3020 Datasheet - Seme LAB

2N3020 Bipolar NPN Device

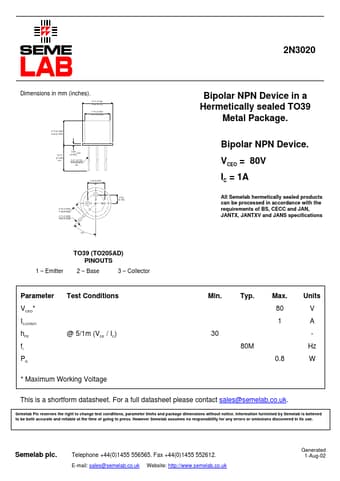

2N3020 Dimensions in mm (inches). 8.51 (0.34) 9.40 (0.37) 7.75 (0.305) 8.51 (0.335) 6.10 (0.240) 6.60 (0.260) 12.70 (0.500) min. (00.0.8395)max. 0.41 (0.016) 0.53 (0.021) dia. 5.08 (0.200) typ. 0.74 (0.029) 1.14 (0.045) 0.71 (0.028) 0.86 (0.034) 2 13 45° 2.54 (0.100) 1 Emitter TO39 (TO205AD) PINOUTS 2 Base 3 Collector Bipolar NPN Device in a Hermetically sealed TO39 Metal Package. Bipolar NPN Device. VCEO = 80V IC = 1A All Semelab hermetically sealed pr.

2N3020 Datasheet (10.12 KB)

2N3020 Datasheet Preview — Preview of 2N3020 PDF

Datasheet Details

Part number:

2N3020

Manufacturer:

Seme LAB

File Size:

10.12 KB

Description:

Bipolar npn device.
