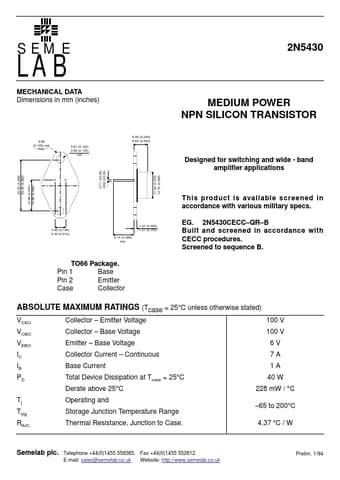

2N5430 - MEDIUM POWER NPN SILICON TRANSISTOR

LAB MECHANICAL DATA Dimensions in mm (inches) SEME 2N5430 MEDIUM POWER NPN SILICON TRANSISTOR 6.35 (0.250) 8.64 (0.340) 3.68 (0.145) rad.

max.

3.61 (0.142) 3.86 (0.145) rad.

24.33 (0.958) 24.43 (0.962) 0.71 (0.028) 0.86 (0.034) Designed for switching and wide - band amplifier applications 11.94 (0.470) 12.70 (0.500) 14.48 (0.570) 14.99 (0.590) This product is available screened in accordance with various military specs.

1.27 (0.050) 1.91 (0.750) 9.14 (0.360) min.

4.83 (0.190) 5.33 (0.
