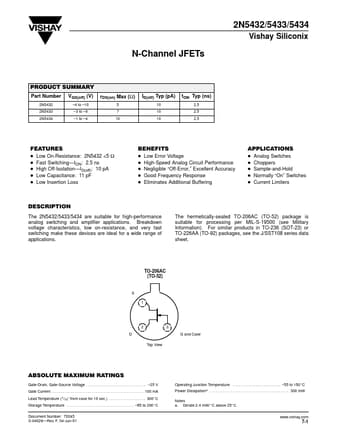

2N5432 Datasheet, Jfets, Vishay Siliconix

2N5432 Features

• Jfets D D D D D Low On-Resistance: 2N5432 <5 W Fast Switching
    –tON: 2.5 ns High Off-Isolation
    –I D(off): 10 pA Low Capacitance: 11 pF Low Insertion Loss BENEFIT

PDF File Details

Part number:

2N5432

Manufacturer:

Vishay ↗ Siliconix

File Size:

44.41kb

Download:

📄 Datasheet

Description:

N-channel jfets. The 2N5432/5433/5434 are suitable for high-performance analog switching and amplifier applications. Breakdown voltage characteristics

2N5432 Application

• Applications D D D D D Analog Switches Choppers Sample-and-Hold Normally “On” Switches Current Limiters DESCRIPTION The 2N5432/5433/5434 are suitab
