2N5484 Datasheet - Vishay Siliconix

N-Channel JFETs

2N5484 Features

* D Excellent High-Frequency Gain: Gps 13 dB (typ) @ 400 MHz

* 5485/6 D Very Low Noise: 2.5 dB (typ) @ 400 MHz

* 5485/6 D Very Low Distortion D High AC/DC Switch Off-Isolation BENEFITS D D D D D Wideband High Gain Very High System Sensitivity High Quality of Amplification High-Speed S

2N5484 General Description

The 2N/SST5484 series consists of n-channel JFETs designed to provide high-performance amplification, especially at high frequencies up to and beyond 400 MHz. The 2N series, TO-226AA (TO-92), and SST series, TO-236 (SOT-23), packages provide low-cost options and are available with tape-and-reel to s.

2N5484 Datasheet (55.77 KB)

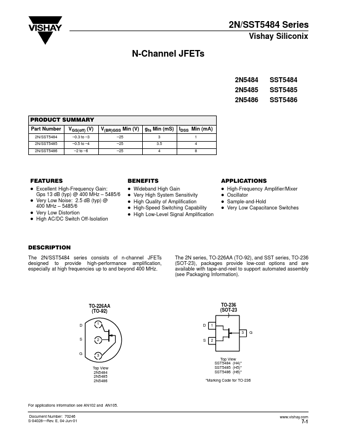

2N5484 Datasheet Preview — Preview of 2N5484 PDF

Datasheet Details

Part number:

2N5484

Manufacturer:

Vishay ↗ Siliconix

File Size:

55.77 KB

Description:

N-channel jfets.
2N/SST5484 Series Vishay Siliconix N-Channel JFETs 2N5484 2N5485 2N5486 PRODUCT SUMMARY Part Number 2N/SST5484 2N/SST5485 2N/SST5486 SST5484 SST5485.
