2N5401 Datasheet - Fairchild Semiconductor

2N5401 PNP General Purpose Amplifier

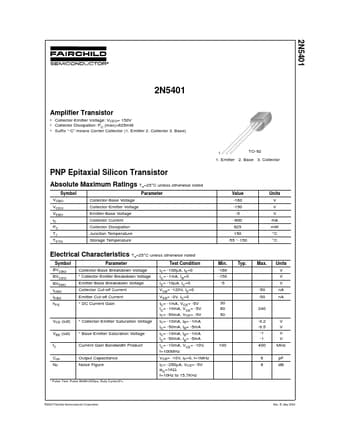

2N5401 2N5401 Amplifier Transistor Collector-Emitter Voltage: VCEO= 150V Collector Dissipation: PC (max)=625mW Suffix “-C” means Conter Collector (1. Emitter 2. Collector 3. Base) 1 TO-92 1. Emitter 2. Base 3. Collector PNP Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol Parameter VCBO VCEO VEBO IC PC TJ TSTG Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Dissip.
