Part number:
2N5401C
Manufacturer:
KEC
File Size:
30.37 KB
Description:
Pnp transistor.

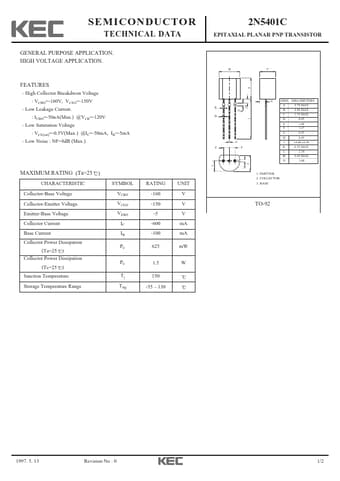

* High Collector Breakdwon Voltage : VCBO=-160V, VCEO=-150V Low Leakage Current. : ICBO=-50nA(Max.) @VCB=-120V Low Saturation Voltage : VCE(sat)=-0.5V(Max.) @IC=-50mA, IB=-5mA Low Noise : NF=8dB (Max.) MAXIMUM RATING (Ta=25 ) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Bas
2N5401C
KEC
30.37 KB
Pnp transistor.
📁 Related Datasheet
2N5401 - PNP General Purpose Amplifier
(Fairchild Semiconductor)
2N5401
2N5401
Amplifier Transistor
• Collector-Emitter Voltage: VCEO= 150V • Collector Dissipation: PC (max)=625mW • Suffix “-C” means Conter Collec.
2N5401 - Amplifier Transistor
(ON Semiconductor)
2N5401
Amplifier Transistors
PNP Silicon
Features
• These are Pb−Free Devices*
MAXIMUM RATINGS
Rating
Symbol Value
Unit
Collector − Emitter Volta.
2N5401 - AMPLIFIER TRANSISTOR
(Motorola)
MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document by 2N5400/D
Amplifier Transistors
PNP Silicon
COLLECTOR 3
2 BASE
1 EMITTER
MAXIMUM RAT.
2N5401 - Bipolar Transistor
(Multicomp)
Bipolar Transistor
Features:
• No External Components Required • Internal Short-Circuit Current Limiting • Internal Thermal Overload Protection
E.
2N5401 - EPITAXIAL PLANAR PNP TRANSISTOR
(KEC)
SEMICONDUCTOR
TECHNICAL DATA
GENERAL PURPOSE APPLICATION. HIGH VOLTAGE APPLICATION.
FEATURES High Collector Breakdwon Voltage : VCBO=-160V, VCEO=-150V.
2N5401 - PNP high-voltage transistors
(Philips)
DISCRETE SEMICONDUCTORS
DATA SHEET
book, halfpage
M3D186
2N5400; 2N5401 PNP high-voltage transistors
Product specification Supersedes data of Septemb.
2N5401 - Silicon NPN Transistor
(NTE)
2N5400 & 2N5401 Silicon PNP Transistor General Purpose Amplifier
TO92 Type Package
Absolute Maximum Ratings:
Collector−Emitter Voltage, VCEO 2N5400 ..
2N5401 - Silicon PNP Power Transistor
(Inchange Semiconductor)
INCHANGE Semiconductor
isc Silicon PNP Power Transistor
DESCRIPTION ·PNP high-voltage transistor ·Low current (max. 300 mA) ·High voltage (max. 160 V).
