2N5433 Datasheet, Jfets, Vishay Siliconix

2N5433 Features

  • Jfets D D D D D Low On-Resistance: 2N5432 <5 W Fast Switching
      –tON: 2.5 ns High Off-Isolation
      –I D(off): 10 pA Low Capacitance: 11 pF Low Insertion Loss BENEFIT

PDF File Details

Part number:

2N5433

Manufacturer:

Vishay ↗ Siliconix

File Size:

44.41kb

Download:

📄 Datasheet

Description:

N-channel jfets. The 2N5432/5433/5434 are suitable for high-performance analog switching and amplifier applications. Breakdown voltage characteristics

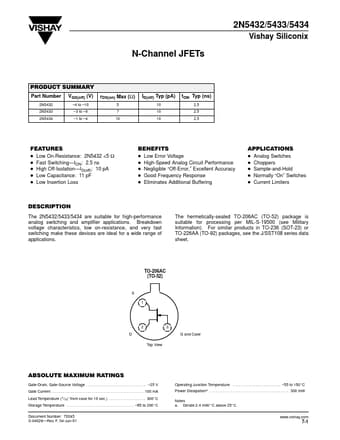

Datasheet Preview: 2N5433 📥 Download PDF (44.41kb)
Page 2 of 2N5433 Page 3 of 2N5433

2N5433 Application

  • Applications D D D D D Analog Switches Choppers Sample-and-Hold Normally “On” Switches Current Limiters DESCRIPTION The 2N5432/5433/5434 are suitab
