2N6687 Datasheet - Seme LAB

2N6687 Bipolar NPN Device

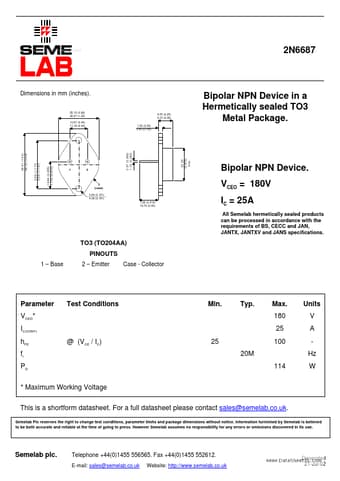

www.DataSheet4U.com 2N6687 Dimensions in mm (inches). 25.15 (0.99) 26.67 (1.05) 10.67 (0.42) 11.18 (0.44) 1.52 (0.06) 3.43 (0.135) 6.35 (0.25) 9.15 (0.36) Bipolar NPN Device in a Hermetically sealed TO3 Metal Package. 38.61 (1.52) 39.12 (1.54) 0.97 (0.060) 1.10 (0.043) 29.9 (1.177) 30.4 (1.197) 22.23 (0.875) max. 16.64 (0.655) 17.15 (0.675) 1 2 Bipolar NPN Device. VCEO = 180V 3 (case) 3.84 (0.151) 4.09 (0.161) 7.92 (0.312) 12.70 (0.50) IC = 25A All Semelab hermetically sealed prod.

2N6687 Datasheet (43.45 KB)

2N6687 Datasheet Preview — Preview of 2N6687 PDF

Datasheet Details

Part number:

2N6687

Manufacturer:

Seme LAB

File Size:

43.45 KB

Description:

Bipolar npn device.
