BAT54CSM - SCHOTTKY DIODE

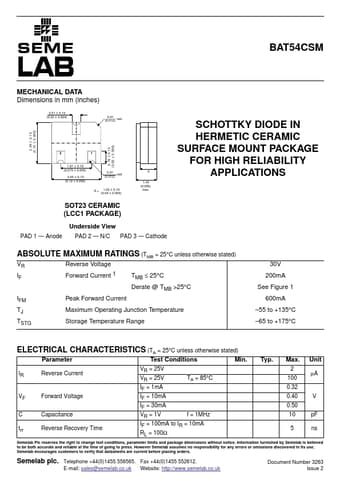

SEME LAB BAT54CSM MECHANICAL DATA Dimensions in mm (inches) 0.51 ± 0.10 (0.02 ± 0.004) 0.31 (0.012) rad. 3 2.54 ± 0.13 (0.10 ± 0.005) 0.76 ± 0.15 (0.03 ± 0.006) 2 1 1.91 ± 0.10 (0.075 ± 0.004) 3.05 ± 0.13 (0.12 ± 0.005) 0.31 (0.012) rad. A = 1.02 ± 0.10 (0.04 ± 0.004) A 1.40 (0.055) max. SOT23 CERAMIC (LCC1 PACKAGE) Underside View PAD 1 Anode PAD 2 N/C PAD 3 Cathode SCHOTTKY DIODE IN HERMETIC CERAMIC SURFACE MOUNT PACKAGE FOR HIGH RELIABILITY APPLIC.
