BC107

GENERAL PURPOSE SMALL SIGNAL NPN BIPOLAR TRANSISTOR

BC107 Features

* SILICON NPN

* HERMETICALLY SEALED TO18

* SCREENING OPTIONS AVAILABLE 2.54 (0.100) Nom. 3 2 1 TO

* 18 METAL PACKAGE Underside View PIN 1

* Emitter PIN 2

* Base PIN 3

* Collector ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise stated) V

BC107 Datasheet (14.38 KB)

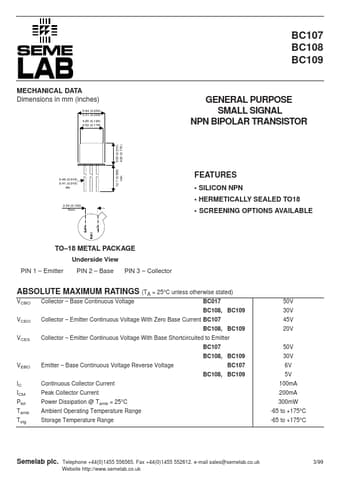

Preview of BC107 PDF

Datasheet Details

Part number:

BC107

Manufacturer:

Seme LAB

File Size:

14.38 KB

Description:

General purpose small signal npn bipolar transistor.
BC107 BC108 BC109 MECHANICAL DATA Dimensions in mm (inches) 5.84 (0.230) 5.31 (0.209) 4.95 (0.195) 4.52 (0.178) GENERAL PURPOSE SMALL SIGNAL NPN BIPO.
