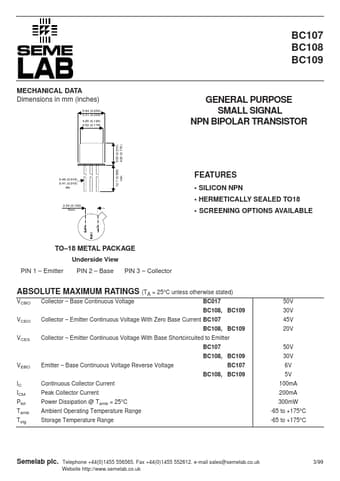

BC109 Datasheet, transistor equivalent, Seme LAB

BC109 Features

• Transistor
• SILICON NPN
• HERMETICALLY SEALED TO18
• SCREENING OPTIONS AVAILABLE 2.54 (0.100) Nom. 3 2 1 TO
    –18 METAL PACKAGE Underside View PIN 1
  &

PDF File Details

Part number:

BC109

Manufacturer:

Seme LAB

File Size:

14.38kb

Download:

📄 Datasheet

Description:

General purpose small signal npn bipolar transistor.
