* SUITABLE FOR BROAD BAND APPLICATIONS
* SIMPLE BIAS CIRCUITS
* ULTRA-LOW THERMAL RESISTANCE
* BeO FREE
* LOW Crss
* HIGH GAIN
* 16 dB MINIMUM APPLICATIONS
* VHF/UHF COMMUNICATIONS from 1 MHz to 400 MHz ABSOLUTE MAXIMUM RATINGS (Tcase

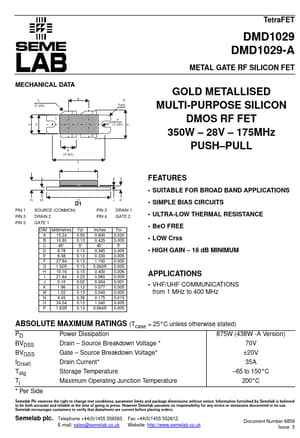

DMD1029
Seme LAB
88.09 KB
Metal gate rf silicon fet.
TetraFET
DMD1029 DMD1029-A
METAL GATE RF SILICON FET
MECHANICAL DATA
C (2 pls)
1 HD
B
2
3
5
4
E (4 pls)
F
I
G (typ)
P (2 pls) A
PIN 1 PIN 3.
