* SUITABLE FOR BROAD BAND APPLICATIONS
* SIMPLE BIAS CIRCUITS
* ULTRA-LOW THERMAL RESISTANCE
* BeO FREE
* LOW Crss
* HIGH GAIN - 15 dB MINIMUM APPLICATIONS
* HF/VHF/UHF COMMUNICATIONS from 1 MHz to 200 MHz ABSOLUTE MAXIMUM RATINGS (Tcase = 25°

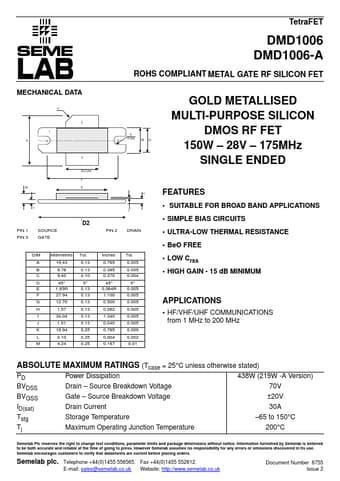

DMD1006
Seme LAB
90.16 KB
Metal gate rf silicon fet.
TetraFET
DMD1006 DMD1006-A
ROHS COMPLIANT METAL GATE RF SILICON FET
MECHANICAL DATA
D
2 1 A
3
G( 2 pls)
F
M
K
J
I
D2
PIN 1 SOURCE PIN 3 GATE
.
