DMD1009-A METAL GATE RF SILICON FET

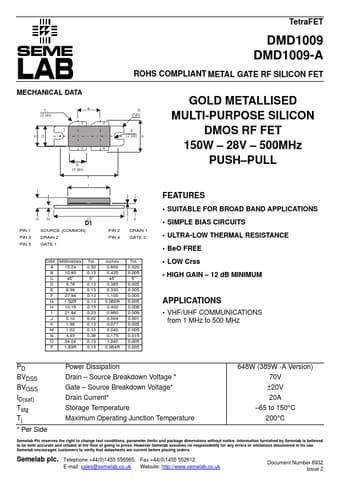

TetraFET DMD1009 DMD1009-A ROHS COMPLIANT METAL GATE RF SILICON FET MECHANICAL DATA C (2 pls) 1 HD B 2 3 5 4 E (4 pls) F I G (typ) P (2 pls) A PIN 1 PIN 3 PIN 5 NM O D1 SOURCE (COMMON) DRAIN 2 GATE 1 JK PIN 2 PIN 4 DRAIN 1 GATE 2 DIM Millimetres Tol. A 15.24 0.50 B 10.80 0.13 C 45° 5° D 9.78 0.13 E 8.38 0.13 F 27.94 0.13 G 1.52R 0.13 H 10.16 0.15 I 21.84 0.23 J 0.10 0.02 K 1.96 0.13 M 1.02 0.13 N 4.45 0.38 O 34.04 0.13 P 1.63R 0.13 Inches 0.600 .

DMD1009-A Features

* SUITABLE FOR BROAD BAND APPLICATIONS

* SIMPLE BIAS CIRCUITS

* ULTRA-LOW THERMAL RESISTANCE

* BeO FREE

* LOW Crss

* HIGH GAIN

* 12 dB MINIMUM APPLICATIONS

* VHF/UHF COMMUNICATIONS from 1 MHz to 500 MHz PD BVDSS BVGSS ID(sat) Tstg Tj

DMD1009-SemeLAB.pdf

DMD1009-A Datasheet Preview — This datasheet PDF includes multiple part numbers: DMD1009-A, DMD1009. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DMD1009-A, DMD1009

Manufacturer:

Seme LAB

File Size:

84.25 KB

Description:

Metal gate rf silicon fet.

Note:

This datasheet PDF includes multiple part numbers: DMD1009-A, DMD1009.
Please refer to the document for exact specifications by model.
