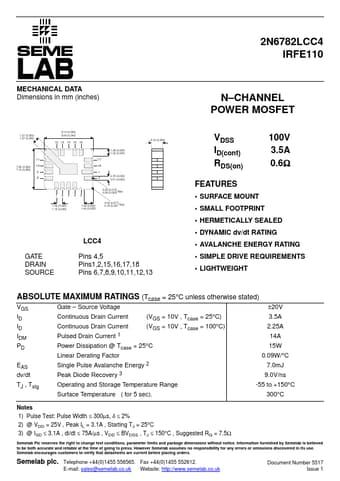

IRFE110 - N-CHANNEL POWER MOSFET
2N6782LCC4 IRFE110 MECHANICAL DATA Dimensions in mm (inches) N CHANNEL POWER MOSFET 1.27 (0.050) 1.07 (0.040) 11 7.62 (0.300) 10 7.12 (0.280) 9 8 9.14 (0.360) 8.64 (0.340) 12 13 14 15 16 1.39 (0.055) 1.02 (0.040) 17 18 1 2 0.76 (0.030) 0.51 (0.020) 76543 1.39 (0.055) 1.15 (0.045) 1.65 (0.065) 1.40 (0.055) 0.33 0.08 (0.013) (0.003) Rad.
0.43 (0.017) 0.18 (0.007 Rad.
≈ 2.16 (0.085) GATE DRAIN SOURCE LCC4 Pins 4,5 Pins1,2,15,16,17,18 Pins 6,7,8,9,10,11,12,13 VDSS I
IRFE110 Features
* SURFACE MOUNT
* SMALL FOOTPRINT
* HERMETICALLY SEALED
* DYNAMIC dv/dt RATING
* AVALANCHE ENERGY RATING
* SIMPLE DRIVE REQUIREMENTS
* LIGHTWEIGHT ABSOLUTE MAXIMUM RATINGS (Tcase = 25°C unless otherwise stated) VGS Gate
* Source Volt
