IRF-24 Datasheet - Vishay

IRF-24 Inductors

www.vishay.com IRF-24 Vishay Dale Inductors, Epoxy Conformal Coated, Axial Leaded ELECTRICAL SPECIFICATIONS Inductance Range: 0.1 μH to 1000 μH Inductance Tolerance: ± 10 % from 0.1 μH to 1000 μH standard, ± 5 % optional Operating Temperature Range: - 20 °C to + 105 °C Dielectric Strength: 250 VRMS MECHANICAL SPECIFICATIONS Terminal Strength: Pull = 5 pounds, twist = 360 °C x 3 Protection: Epoxy uniform roll coated Leads: Tinned copper ENVIRONMENTAL SPECIFICATIONS Maximum Temperature Rise: + .

IRF-24 Features

* High performance ferrite core is used in this epoxy conformally coated choke which allows for inductance values to 1000 μH

* Axial lead type, small lightweight design

* Special magnetic core structure contributes to high Q and self-resonant frequencies

* Treated wit

IRF-24 Datasheet (64.29 KB)

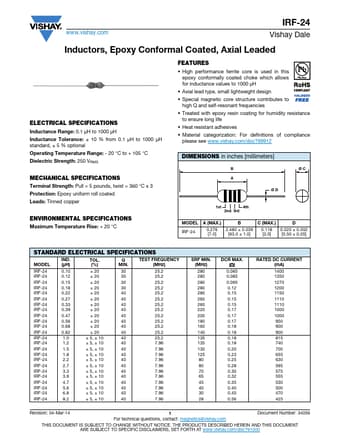

Preview of IRF-24 PDF
IRF-24 Datasheet Preview Page 2 IRF-24 Datasheet Preview Page 3

Datasheet Details

Part number:

IRF-24

Manufacturer:

Vishay ↗

File Size:

64.29 KB

Description:

Inductors.
