IRF054 Datasheet - International Rectifier

IRF054 - MOSFET transistor

PD - 90640 REPETITIVE A V ALANCHE AND dv/dt RATED HEXFET TRANSISTORS THRU-HOLE (TO-204AA/AE) Product Summary Part Number BVDSS RDS(on) IRF054 60V 0.022Ω ID 45A  IRF054 60V, N-CHANNEL The HEXFET technology is the key to International Rectifier’s advanced line of power MOSFET transistors.

The efficient geometry and unique processing of this latest “State of the Art” design achieves: very low on-state resistance combined with high transconductance; superior reverse energy and diode reco

IRF054 Features

* n n n n n Repetitive Avalanche Ratings Dynamic dv/dt Rating Hermetically Sealed Simple Drive Requirements Ease of Paralleling Absolute Maximum Ratings Parameter ID @ VGS = 0V, TC = 25°C ID @ VGS =0V, TC = 100°C I DM PD @ TC = 25°C VGS EAS IAR EAR dv/dt TJ T STG Continuous Drain Current Continuous

IRF054_InternationalRectifier.pdf

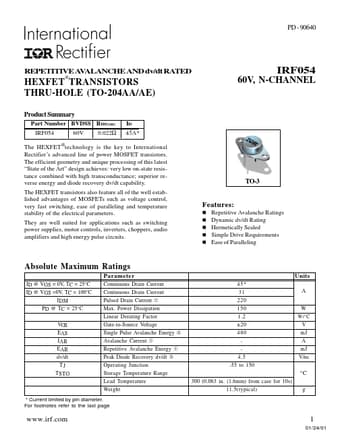

Preview of IRF054 PDF
IRF054 Datasheet Preview Page 2 IRF054 Datasheet Preview Page 3

Datasheet Details

Part number:

IRF054

Manufacturer:

International Rectifier

File Size:

146.18 KB

Description:

Mosfet transistor.
