IRF034 Datasheet - International Rectifier

IRF034 - MOSFET transistor

PD - 90585 REPETITIVE A V ALANCHE AND dv/dt RATED HEXFET TRANSISTORS THRU-HOLE (TO-204AA/AE) Product Summary Part Number IRF034   IRF034 60V, N-CHANNEL BVDSS RDS(on) 60V 0.050Ω ID 25Α The HEXFET technology is the key to International Rectifier’s advanced line of power MOSFET transistors.

The efficient geometry and unique processing of this latest “State of the Art” design achieves: very low on-state resistance combined with high transconductance; superior reverse energy and diode recove

IRF034 Features

* n n n n n Repetitive Avalanche Ratings Dynamic dv/dt Rating Hermetically Sealed Simple Drive Requirements Ease of Paralleling Absolute Maximum Ratings Parameter ID @ VGS = 0V, TC = 25°C ID @ VGS = 0V, TC = 100°C I DM PD @ TC = 25°C VGS EAS IAR EAR dv/dt TJ T STG Continuous Drain Current Continuou

IRF034_InternationalRectifier.pdf

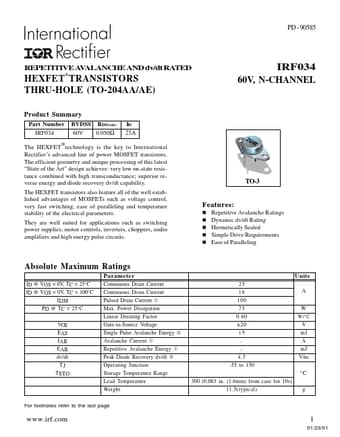

Preview of IRF034 PDF
IRF034 Datasheet Preview Page 2 IRF034 Datasheet Preview Page 3

Datasheet Details

Part number:

IRF034

Manufacturer:

International Rectifier

File Size:

144.06 KB

Description:

Mosfet transistor.
