IRF1010EL - Power MOSFET

Datasheet Summary

Description

Advanced HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

Features

  • rop Ripple ≤ 5% [ ISD ].
  • VGS = 5.0V for Logic Level and 3V Drive Devices Fig 14. For N-channel HEXFET® power MOSFETs www. irf. com 7 IRF1010ES/IRF1010EL D2Pak Package Outline 1 0.54 (.4 15) 1 0.29 (.4 05) 1.4 0 (.055 ) M AX. -A2 4.69 (.1 85) 4.20 (.1 65) -B 1.3 2 (.05 2) 1.2 2 (.04 8) 1 0.16 (.4 00 ) RE F. 6.47 (.2 55 ) 6.18 (.2 43 ) 15 .4 9 (.6 10) 14 .7 3 (.5 80) 5 .28 (.20 8) 4 .78 (.18 8) 2.7 9 (.110 ) 2.2 9 (.090 ) 2.61 (.1 03 ) 2.32 (.0 91 ) 1.3 9 (.0 5 5) 1.1 4 (.0.

📥 Download Datasheet

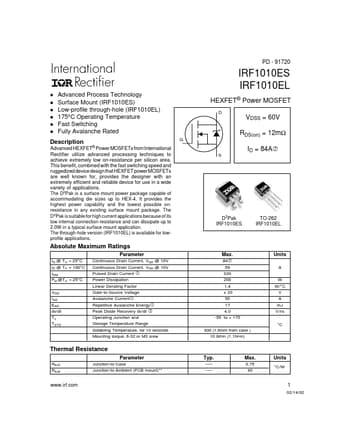

Datasheet preview – IRF1010EL

📁 Similar Datasheet

  • IRF1010E - N-Channel MOSFET (INCHANGE)
  • IRF1010ES - N-Channel MOSFET (INCHANGE)
  • IRF1010EZ - N-Channel MOSFET (INCHANGE)
  • IRF1010EZS - N-Channel MOSFET (INCHANGE)
  • IRF1010 - N-Channel Power MOSFET (nELL)
  • IRF1010N - N-Channel MOSFET (INCHANGE)
  • IRF1010NS - N-Channel MOSFET (INCHANGE)
  • IRF1010ZS - N-Channel MOSFET (INCHANGE)
  • IRF101 - N-Channel Power MOSFET (Fairchild Semiconductor)
  • IRF1018E - N-Channel MOSFET (INCHANGE)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
PD - 91720 IRF1010ES IRF1010EL l l l l l l Advanced Process Technology Surface Mount (IRF1010ES) Low-profile through-hole (IRF1010EL) 175°C Operating Temperature Fast Switching Fully Avalanche Rated G HEXFET® Power MOSFET D VDSS = 60V RDS(on) = 12mΩ Description Advanced HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4.
