IRF1010EZS - N-Channel MOSFET

Datasheet Summary

Features

  • With To-263(D2PAK) package.
  • Low input capacitance and gate charge.
  • Low gate input resistance.
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

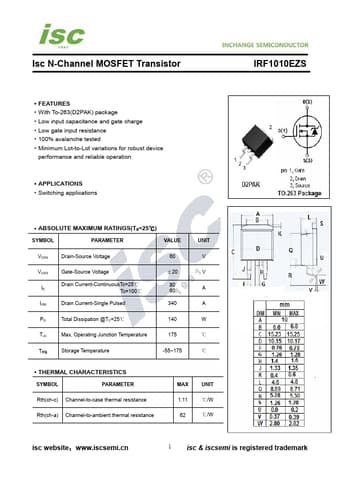

Datasheet preview – IRF1010EZS
