IRF510 - Power MOSFET

Datasheet Summary

Description

Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

Features

  • Dynamic dV/dt rating.
  • Repetitive avalanche rated Available.
  • 175 °C operating temperature.
  • Fast switching Available.
  • Ease of paralleling.
  • Simple drive requirements Available.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 Note.
  • This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts with lead (Pb) t.

📥 Download Datasheet

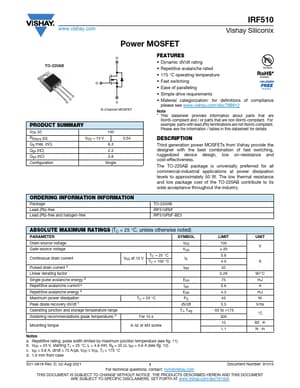

Datasheet preview – IRF510

Datasheet Details

Part number IRF510
Manufacturer Vishay
File Size 152.79 KB
Description Power MOSFET
Datasheet download datasheet IRF510 Datasheet
Additional preview pages of the IRF510 datasheet.

📁 Similar Datasheet

  • IRF510 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • IRF510 - N-Channel Power MOSFET (Fairchild Semiconductor)
  • IRF510 - Power MOSFET (International Rectifier)
  • IRF510A - Advanced Power MOSFET (Fairchild Semiconductor)
  • IRF510PBF - HEXFET POWER MOSFET (International Rectifier)
  • IRF510S - Power MOSFET (International Rectifier)
  • IRF511 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • IRF511 - N-Channel Power MOSFET (Fairchild Semiconductor)
  • IRF511 - N-Channel Enhancement-Mode Vertical DMOS Power FET (Supertex Inc)
  • IRF511 - (IRF510 - IRF513) N-Channel Power MOSFETs (Harris Corporation)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text
www.vishay.com IRF510 Vishay Siliconix Power MOSFET D TO-220AB S D G G S N-Channel MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg max. (nC) Qgs (nC) Qgd (nC) Configuration 100 VGS = 10 V 8.3 2.3 3.8 Single 0.54 ORDERING INFORMATION INFORMATION Package Lead (Pb)-free Lead (Pb)-free and halogen-free FEATURES • Dynamic dV/dt rating • Repetitive avalanche rated Available • 175 °C operating temperature • Fast switching Available • Ease of paralleling • Simple drive requirements Available • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 Note * This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant.
