IRFY220 Datasheet - Seme LAB

IRFY220 N-Channel MOSFET

www.DataSheet4U.com IRFY220 Dimensions in mm (inches). 10.6 (0.42) 0.8 (0.03) 4.6 (0.18) 16.5 (0.65) 3.70 Dia. Nom N-Channel MOSFET in a Hermetically sealed TO257AB Metal Package. 1.5(0.53) 10.6 (0.42) 1 2 3 12.70 (0.50 min) VDSS = 200V ID = 4A RDS(ON) = 0.92Ω All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications. 2.54 (0.1) BSC 1.0 (0.039) 2.70 (0.106) TO257AB (TO220M) PINOUTS 1

IRFY220_SemeLAB.pdf

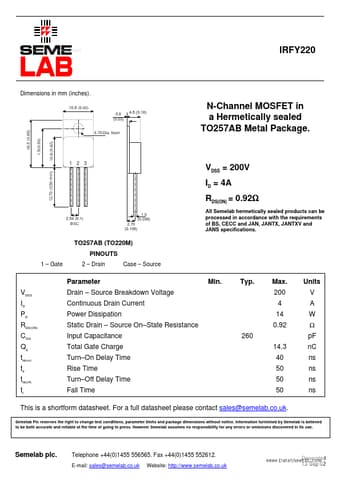

Preview of IRFY220 PDF

Datasheet Details

Part number:

IRFY220

Manufacturer:

Seme LAB

File Size:

43.52 KB

Description:

N-channel mosfet.
