IRFY240C Datasheet - Seme LAB

IRFY240C N-CHANNEL POWER MOSFET

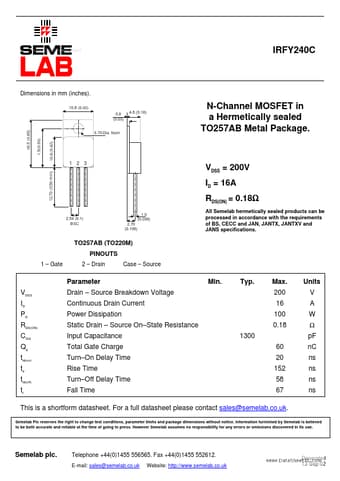

www.DataSheet4U.com IRFY240C Dimensions in mm (inches). 10.6 (0.42) 0.8 (0.03) 4.6 (0.18) 16.5 (0.65) 3.70 Dia. Nom N-Channel MOSFET in a Hermetically sealed TO257AB Metal Package. 1.5(0.53) 10.6 (0.42) 1 2 3 12.70 (0.50 min) VDSS = 200V ID = 16A RDS(ON) = 0.18Ω All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications. 2.54 (0.1) BSC 1.0 (0.039) 2.70 (0.106) TO257AB (TO220M) PINOUTS 1 .

IRFY240C_SemeLAB.pdf

Preview of IRFY240C PDF

Datasheet Details

Part number:

IRFY240C

Manufacturer:

Seme LAB

File Size:

43.51 KB

Description:

N-channel power mosfet.
