MM5007 Datasheet - Semelab Plc

MM5007 Bipolar PNP Device

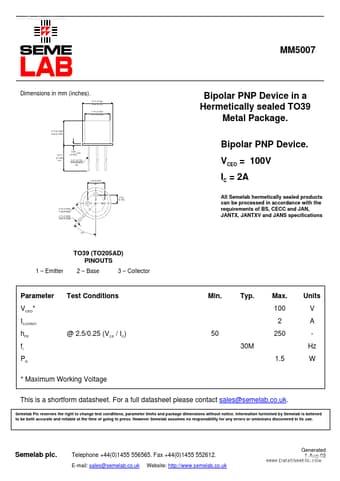

www.DataSheet4U.com MM5007 Dimensions in mm (inches). 8.51 (0.34) 9.40 (0.37) 7.75 (0.305) 8.51 (0.335) Bipolar PNP Device in a Hermetically sealed TO39 Metal Package. Bipolar PNP Device. 6.10 (0.240) 6.60 (0.260) 12.70 (0.500) min. 0.89 max. (0.035) 0.41 (0.016) 0.53 (0.021) dia. VCEO = 100V 5.08 (0.200) typ. IC = 2A 2.54 (0.100) 2 1 0.74 (0.029) 1.14 (0.045) 0.71 (0.028) 0.86 (0.034) 3 All Semelab hermetically sealed products can be processed in accordance with the requirements of .

MM5007 Datasheet (40.15 KB)

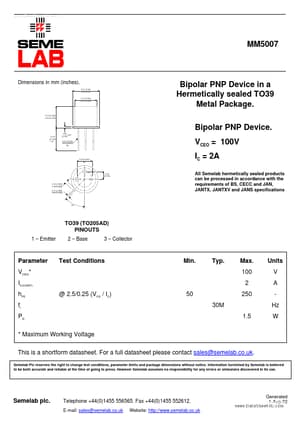

Preview of MM5007 PDF

Datasheet Details

Part number:

MM5007

Manufacturer:

Semelab Plc

File Size:

40.15 KB

Description:

Bipolar pnp device.
