HFD5N60F - 600V N-Channel MOSFET

SemiHow

📥 Download Datasheet

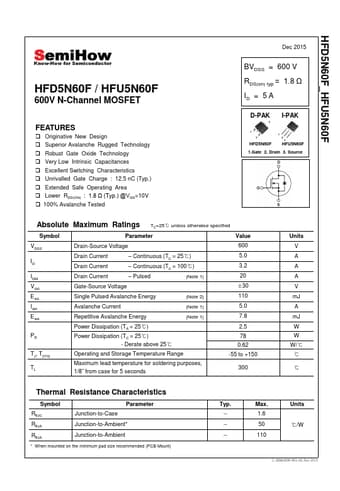

HFD5N60F Datasheet Preview — Preview of HFD5N60F PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HFD5N60F
Manufacturer	SemiHow
File Size	294.16 KB
Description	600V N-Channel MOSFET
Datasheet	HFD5N60F-SemiHow.pdf

HFD5N60F Product details

Features

Originative New Design Superior Avalanche Rugged Technology Robust Gate Oxide Technology Very Low Intrinsic Capacitances Excellent Switching Characteristics Unrivalled Gate Charge : 12.5 nC (Typ. ) Extended Safe Operating Area Lower RDS(ON) ȍ7S#9GS=10V 100% Avalanche Tested Dec 2015 BVDSS = 600 V RDS(on) typ ȍ ID = 5 A D-PAK I-PAK 2 1 3 HFD5N60F 1 2 3 HFU5N60F 1.Gate 2. Drain 3. Source Absolute Maximum Ratings TC=25୅ unless otherwise specified Symbol P.
