HFD5N60S - N-Channel MOSFET

SemiHow

📥 Download Datasheet

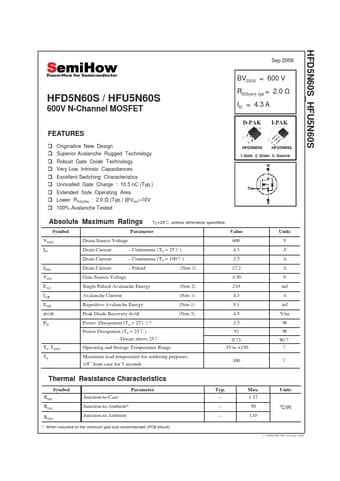

HFD5N60S Datasheet Preview — Preview of HFD5N60S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HFD5N60S
Manufacturer	SemiHow
File Size	208.27 KB
Description	N-Channel MOSFET
Datasheet	HFD5N60S-SemiHow.pdf

HFD5N60S Product details

Features

Originative New Design Superior Avalanche Rugged Technology Robust Gate Oxide Technology Very Low Intrinsic Capacitances Excellent Switching Characteristics Unrivalled Gate Charge : 10.5 nC (Typ. ) Extended Safe Operating Area Lower RDS(ON) : 2.0 ȍ (Typ. ) @VGS=10V 100% Avalanche Tested D-PAK I-PAK 2 1 3 HFD5N60S 1 2 3 HFU5N60S 1.Gate 2. Drain 3. Source Absolute Maximum Ratings TC=25୅ unless otherwise specified Symbol Parameter Value VDSS ID IDM VGS EAS IAR EAR dv/dt Dr.
