HFD5N65S - N-Channel MOSFET

SemiHow

📥 Download Datasheet

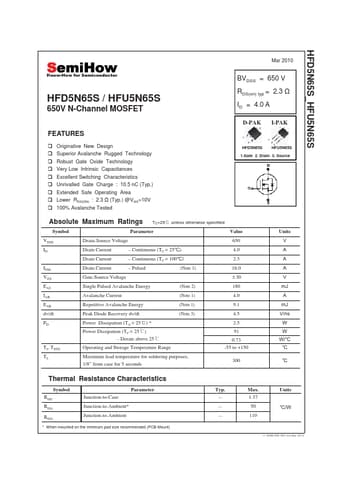

HFD5N65S Datasheet Preview — Preview of HFD5N65S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HFD5N65S
Manufacturer	SemiHow
File Size	207.77 KB
Description	N-Channel MOSFET
Datasheet	HFD5N65S-SemiHow.pdf

HFD5N65S Product details

Features

Originative New Design Superior Avalanche Rugged Technology Robust Gate Oxide Technology Very Low Intrinsic Capacitances Excellent Switching Characteristics Unrivalled Gate Charge : 10.5 nC (Typ. ) Extended Safe Operating Area Lower RDS(ON) : 2.3 ȍ (Typ. ) @VGS=10V 100% Avalanche Tested D-PAK I-PAK 2 1 3 HFD5N65S 1 2 3 HFU5N65S 1.Gate 2. Drain 3. Source Absolute Maximum Ratings TC=25୅ unless otherwise specified Symbol Parameter Value VDSS ID IDM VGS EAS IAR EAR dv/dt Dr.
