HTS16A80H, HTS16A60H Datasheet - SemiHow

HTS16A80H TRIAC

Semihow’s standard TRIAC product is a glass passivated device, has a high commutative performance, stable gate triggering level to temperature and high off state voltage. It is generally suitable for power and phase control in ac application Absolute Maximum Ratings Symbol Parameter VDRM VRRM IT.

HTS16A80H Features

*  Repetitive Peak Off-State Voltage : 600V/800V  R.M.S On

* State Current (IT(RMS) = 16A)  Gate Trigger Current : 35mA  High commutation capability. VDRM = 600V/800V IT(RMS) = 16 A ITSM = 168 A IGT = 35mA Symbol TO-220F Applications General purpose of AC switching, heating control, motor

HTS16A60H-SemiHow.pdf

This datasheet PDF includes multiple part numbers: HTS16A80H, HTS16A60H. Please refer to the document for exact specifications by model.

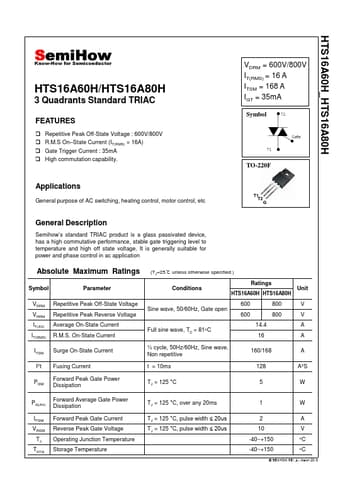

HTS16A80H Datasheet Preview Page 2 HTS16A80H Datasheet Preview Page 3

Datasheet Details

Part number:

HTS16A80H, HTS16A60H

Manufacturer:

SemiHow

File Size:

382.42 KB

Description:

Triac.

Note:

This datasheet PDF includes multiple part numbers: HTS16A80H, HTS16A60H.
Please refer to the document for exact specifications by model.
