HTS25A60H

3 Quadrants Standard TRIAC

HTS25A60H Features

*  Repetitive Peak Off-State Voltage : 600V  R.M.S On

* State Current (IT(RMS) = 25A)  Gate Trigger Current : 35mA  High commutation capability. VDRM = 600 V IT(RMS) = 25 A ITSM = 260 A IGT = 35mA Symbol TO-220F Applications General purpose of AC switching, heating control, motor control,

HTS25A60H General Description

Semihow’s standard TRIAC product is a glass passivated device, has a high commutative performance, stable gate triggering level to temperature and high off state voltage. It is generally suitable for power and phase control in ac application Absolute Maximum Ratings (TJ=25℃ unless otherwise specifi.

HTS25A60H Datasheet (347.48 KB)

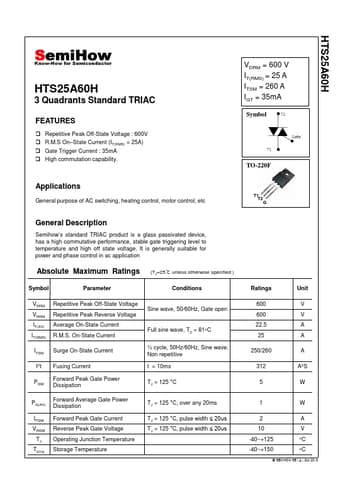

Preview of HTS25A60H PDF

Datasheet Details

Part number:

HTS25A60H

Manufacturer:

SemiHow

File Size:

347.48 KB

Description:

3 quadrants standard triac.
