SM2N60S - 600V N-Channel MOSFET

📥 Download Datasheet

SM2N60S Datasheet Preview — Preview of SM2N60S PDF

datasheet Preview Page 2

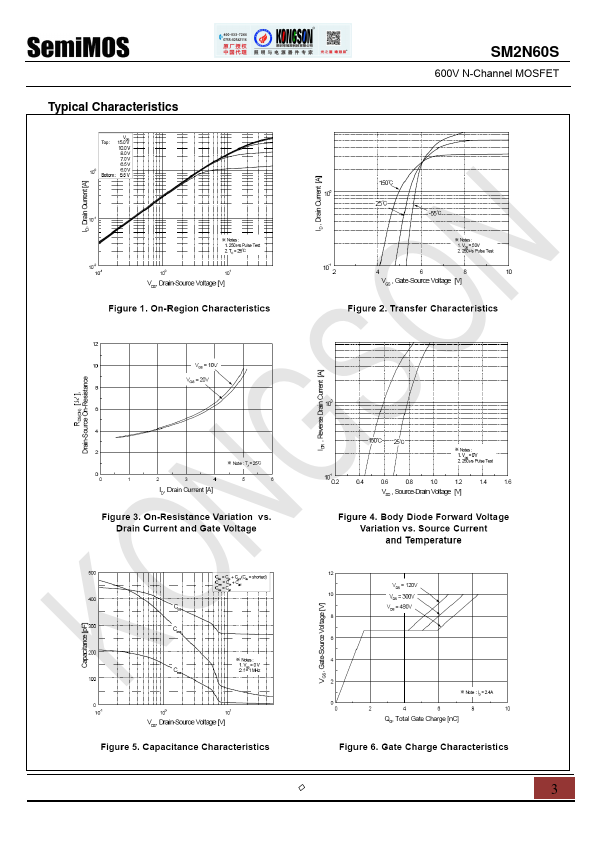

datasheet Preview Page 3

Datasheet Details

Part number	SM2N60S
Manufacturer	SemiMOS
File Size	549.17 KB
Description	600V N-Channel MOSFET
Datasheet	SM2N60S-SemiMOS.pdf

SM2N60S Product details

Features

Low Intrinsic Capacitances.
Excellent Switching Characteristics.
Extended Safe Operating Area.
Unrivalled Gate Charge :Qg=6.8nC (Typ. ).
BVDSS=600V,ID=2A.
RDS(on) : 4.5Ω (Max) @VG=10V.
100% Avalanche Tested 1.Gate (G) 2.Drain (D) 3.Source (S) Absolute Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VDSS ID VGSS EAS IAR PD Tj Tstg TL Parameter Drain-Source Voltage Drain Current Gate-Source Voltage Tc=25℃ Tc=100℃ Sin.
