STF12A60 - Bi-Directional Triode Thyristor

Product Overview

SemiWell Semiconductor

Datasheet Details

Part number	STF12A60
Manufacturer	SemiWell Semiconductor
File Size	763.41 KB
Description	Bi-Directional Triode Thyristor
Datasheet	STF12A60 Datasheet

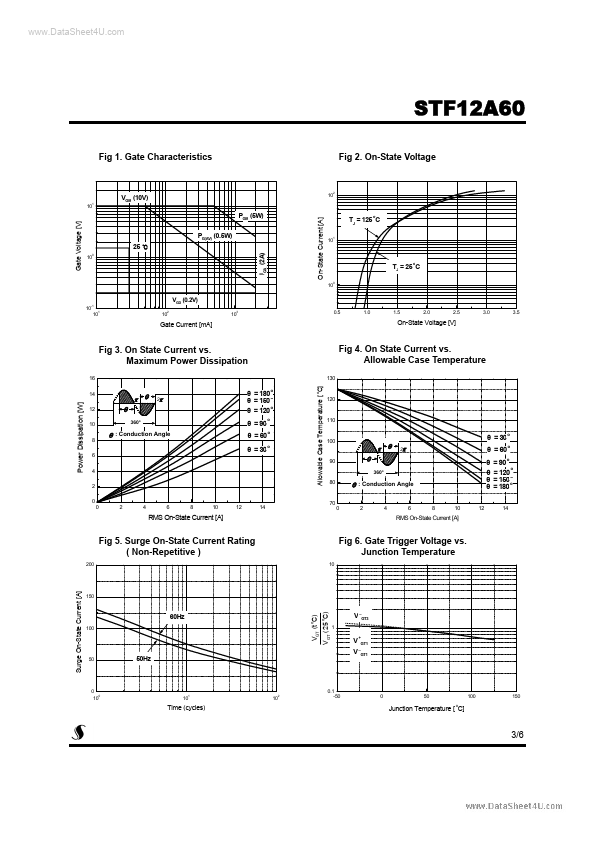

Additional preview pages of the STF12A60 datasheet.

Product details

Description

This device is fully isolated package suitable for AC switching application, phase control application such as fan speed and temperature modulation control, lighting control and static switching relay.

Features

Repetitive Peak Off-State Voltage : 600V R. M. S On-State Current ( IT(RMS)= 12 A ).
High Commutation dv/dt.
Isolation Voltage ( VISO = 1500V AC ).
STF12A60 UL : E228720 Symbol ○ 2.T2 ▼ ▲ ○ 3.Gate 1.T1 ○ General.
