STF12N60M2

N-channel Power MOSFET

STF12N60M2 Features

* Order code VDS RDS(on) max. ID PTOT STF12N60M2 600 V 0.450 Ω 9 A 25 W

* Extremely low gate charge

* Excellent output capacitance (COSS) profile

* 100% avalanche tested

* Zener-protected Applications

* Switching applications Description This device is an

STF12N60M2 General Description

This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters. S(3).

STF12N60M2 Datasheet (280.40 KB)

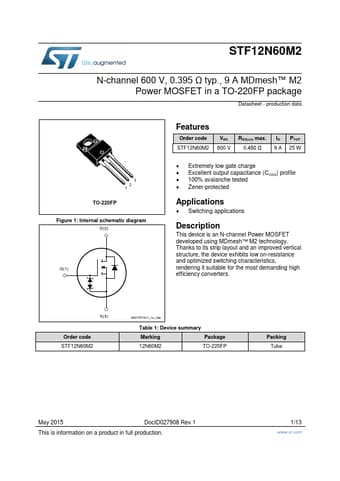

Preview of STF12N60M2 PDF

Datasheet Details

Part number:

STF12N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

280.40 KB

Description:

N-channel power mosfet.
STF12N60M2 N-channel 600 V, 0.395 Ω typ., 9 A MDmesh™ M2 Power MOSFET in a TO-220FP package Datasheet - production data 3 12 TO-220FP Figure 1: Inte.
