2N4150 - NPN Transistor

2N4150 Description

Data Sheet No.2N4150 Type 2N4150 Geometry 9201 Polarity NPN Qual Level: JAN - JANTXV .

2N4150 Features

* Power switching transistor for high speed switching applicatons. Housed in a TO-5 case. Also available in chip form using the 9201 chip geometry. The Min and Max limits shown are per MIL-PRF-19500/394 which Semicoa meets in all cases. Generic Part Number: 2N

📥 Download Datasheet

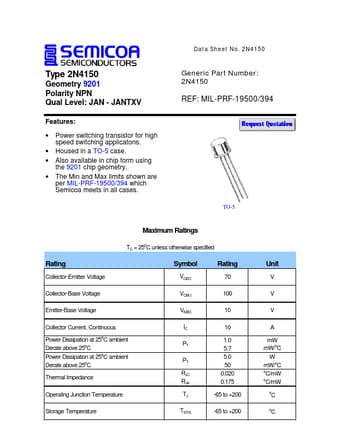

Preview of 2N4150 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2N4150
Manufacturer
Semicoa Semiconductor
File Size
47.86 KB
Datasheet
2N4150_SemicoaSemiconductor.pdf
Description
NPN Transistor
