SB1545S, SB1520S - (SB1520S - SB15100S) Schottky barrier rectifier diodes

Semikron International

Datasheet Details

Part number: SB1545S, SB1520S
Manufacturer: Semikron International
File Size: 193.72 KB
Datasheet: SB1520S_SemikronInternational.pdf
Description: (SB1520S - SB15100S) Schottky barrier rectifier diodes
Note: This datasheet PDF includes multiple part numbers: SB1545S, SB1520S.
Please refer to the document for exact specifications by model.

Max. solder temperature: 260°C.
Plastic material has UL classification 94V-0.

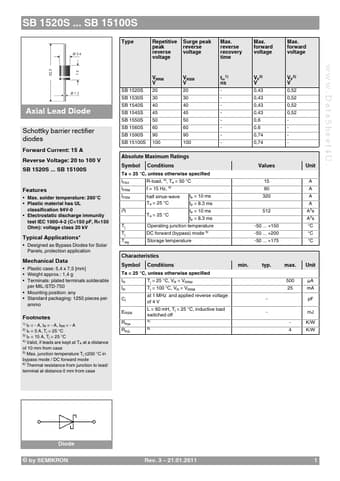

Electrostatic discharge immunity test IEC 1000-4-2 (C=150 pF, R=150 Ohm): voltage class 20 kV SB 1540S SB 1545S SB 1550S SB 1560S SB 1590S SB 15100S Absolute Maximum Ratings Symbol IFAV IFRM IFSM i2t Tj Tj Tstg Conditions R-load, 4), Ta = 50 °C f > 15 Hz, 4) half sinus-wave Ta = 25 °C Ta = 25 °C tp = 10 ms tp = 8.3 ms tp = 10 ms tp = 8.3 ms Values 15 60 320 512 -50 +150 -50 +200 -50 +.
