SEMIX503GD126HDC SPT IGBT

Semikron International

SEMIX503GD126HDC Description

SEMiX503GD126HDc SEMiX® 33c Trench IGBT Modules SEMiX503GD126HDc .

SEMIX503GD126HDC Features

* Homogeneous Si
* Trench = Trenchgate technology
* VCE(sat) with positive temperature coefficient
* High short circuit capability

SEMIX503GD126HDC Applications

* br>
* AC inverter drives
* UPS
* Electronic Welding Remarks
* Case temperatur limited to TC=125°C max.
* Not for new design Absolute Maximum Ratings Symbol Conditions IGBT VCES IC Tj = 25 °C Tj = 150 °C Tc = 25 °C Tc = 80 °C ICnom ICRM ICRM = 2xICnom

📥 Download Datasheet

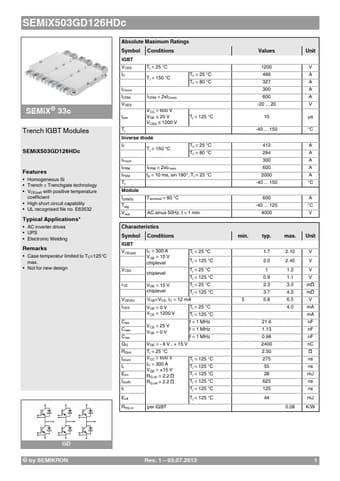

SEMIX503GD126HDC Datasheet Preview — Preview of SEMIX503GD126HDC PDF

Datasheet Details

Part number: SEMIX503GD126HDC
Manufacturer: Semikron International
File Size: 508.05 KB
Datasheet: SEMIX503GD126HDC_SemikronInternational.pdf
Description: SPT IGBT
