SC2248SO, SC2242UA, High Sensitive Digital-Latch Hall Effect Sensor

SC224X www.semiment.com High Sensitive Digital-Latch Hall Effect Sensor with Internal Pull-up Resistor .
he SC224X family, produced with BiCMOS technology, is a chopper-stabilized Hall Effect Sensor that offers a magnetic sensing solution with superior se.

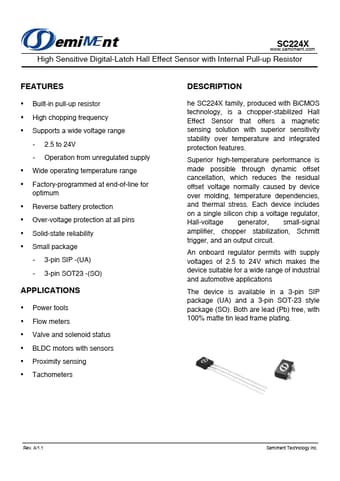

datasheet Preview Page 1 from Datasheet4u.com

SC2242UA-Semiment.pdf

SC2248SO Datasheet Preview — This datasheet PDF includes multiple part numbers: SC2248SO, SC2242UA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SC2248SO, SC2242UA

Manufacturer:

Semiment

File Size:

451.32 KB

Description:

High Sensitive Digital-Latch Hall Effect Sensor

Note:

This datasheet PDF includes multiple part numbers: SC2248SO, SC2242UA.
Please refer to the document for exact specifications by model.

Features

* Built-in pull-up resistor
* High chopping frequency
* Supports a wide voltage range - 2.5 to 24V - Operation from unregulated supply
* Wide operating temperature range
* Factory-programmed at end-of-line for optimum
* Reverse battery protection
* Over-voltage protection

Applications

* Power tools
* Flow meters
* Valve and solenoid status
* BLDC motors with sensors
* Proximity sensing
