SC2248UA - High Sensitive Digital-Latch Hall Effect Sensor

Product Overview

Semiment

Datasheet Details

Part number	SC2248UA
Manufacturer	Semiment
File Size	451.32 KB
Description	High Sensitive Digital-Latch Hall Effect Sensor
Datasheet	SC2248UA Datasheet
Note	This datasheet PDF includes multiple part numbers: SC2248UA, SC2242UA. Please refer to the document for exact specifications by model.

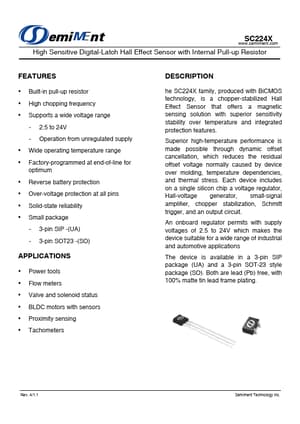

Additional preview pages of the SC2248UA datasheet.

Product details

Description

he SC224X family, produced with BiCMOS technology, is a chopper-stabilized Hall Effect Sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection

Features

Built-in pull-up resistor.
High chopping frequency.
Supports a wide voltage range - 2.5 to 24V - Operation from unregulated supply.
Wide operating temperature range.
Factory-programmed at end-of-line for optimum.
Reverse battery protection.
Over-voltage protection at all pins.
Solid-state reliability.
Small package - 3-pin SIP -(UA) - 3-pin SOT23 -(SO).
