RS5AB - Ultra-Fast Recovery Rectifier Diode

Datasheet Summary

Features

Idea for printed circuit board Glass passivated Junction chip Low reverse leakage High forward surge current capability.

Semiware

📥 Download Datasheet

Datasheet Details

Part number	RS5AB
Manufacturer	Semiware
File Size	93.12 KB
Description	Ultra-Fast Recovery Rectifier Diode
Datasheet	RS5AB Datasheet

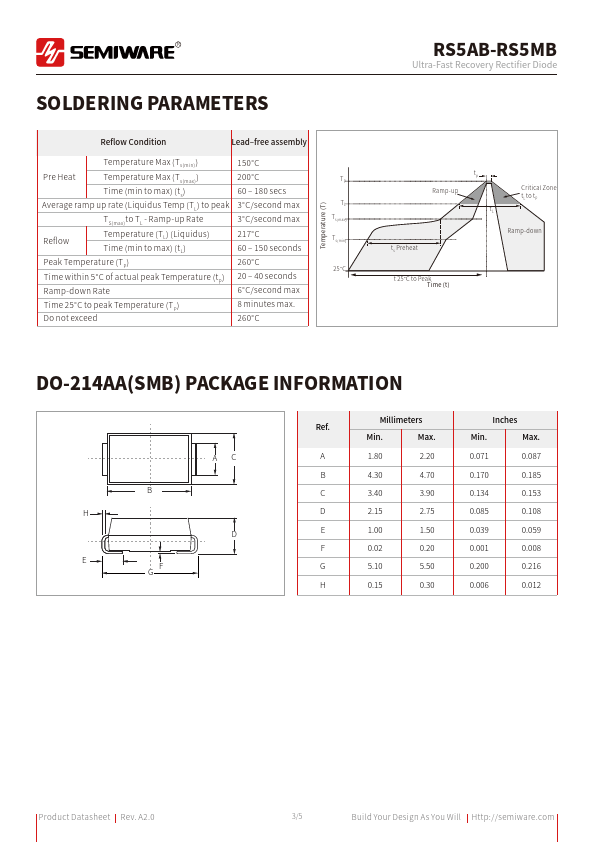

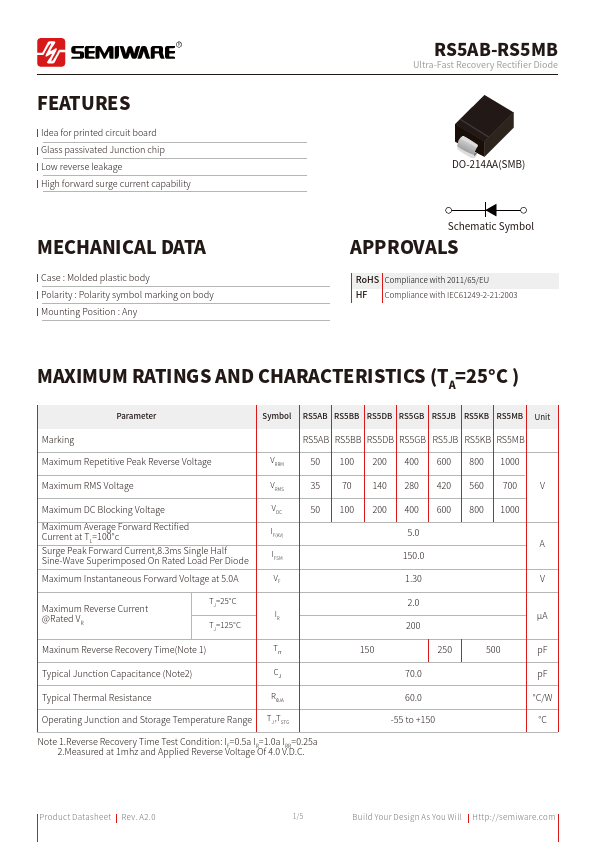

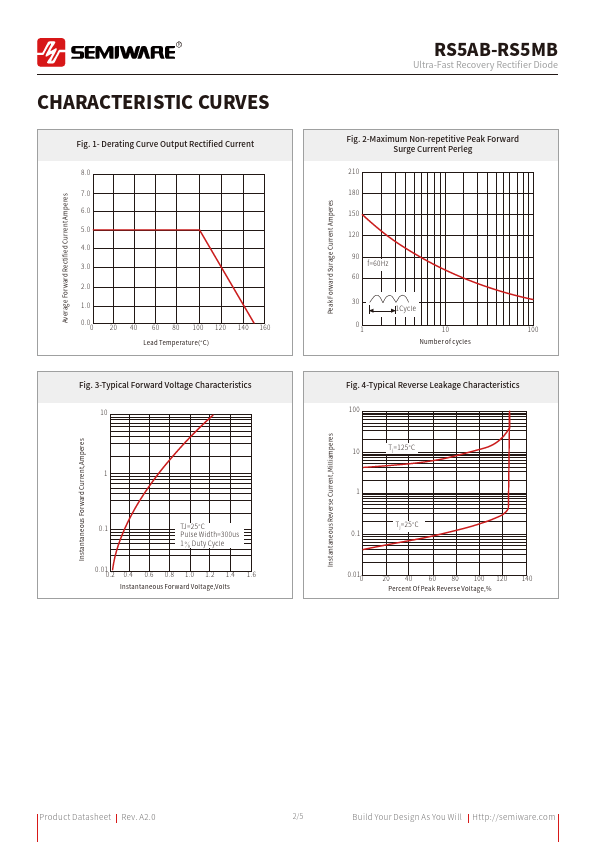

Additional preview pages of the RS5AB datasheet.

📁 Similar Datasheet

RS5AB - FAST RECOVERY RECTIFIER (JIEJIE)
RS5AB - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
RS5AB - Surface Mount Fast Recovery Rectifiers (UNSEMI)
RS5AB - Surface Mount Fast Recovery Rectifiers (Tinysemi)
RS5ABF - 5.0Amp Fast Recovery Surface Mounted Rectifiers (Xirun)
RS5A - Surface Mount Rectifiers (LGE)
RS5A - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (SUNMATE)
RS5A - SURFACE MOUNT SUPER FAST RECTIFIER (Kingtronics)
RS5A - 5.0 AMP SURF ACE MOUNT FAST RECOVERY RECTIFIER (GW)
RS5A - Fast Recovery Rectifier Diodes (MLSM)

Other Datasheets by Semiware

RS5BB - Ultra-Fast Recovery Rectifier Diode
RS5DB - Ultra-Fast Recovery Rectifier Diode
RS5GB - Ultra-Fast Recovery Rectifier Diode
RS5JB - Ultra-Fast Recovery Rectifier Diode
RS5KB - Ultra-Fast Recovery Rectifier Diode
RS5MB - Ultra-Fast Recovery Rectifier Diode

Full PDF Text Transcription

Click to expand full text

R FEATURES Idea for printed circuit board Glass passivated Junction chip Low reverse leakage High forward surge current capability MECHANICAL DATA Case : Molded plastic body Polarity : Polarity symbol marking on body Mounting Position : Any RS5AB-RS5MB Ultra-Fast Recovery Rectiﬁer Diode DO-214AA(SMB) Schematic Symbol APPROVALS RoHS Compliance with 2011/65/EU HF Compliance with IEC61249-2-21:2003 MAXIMUM RATINGS AND CHARACTERISTICS (TA=25°C ) Parameter Symbol RS5AB RS5BB RS5DB RS5GB RS5JB RS5KB RS5MB Unit Marking RS5AB RS5BB RS5DB RS5GB RS5JB RS5KB RS5MB Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage VDC Maximum Average Forward Rectiﬁed Current at TL=100°c IF(AV) Surge
