RS5MB - Ultra-Fast Recovery Rectifier Diode

This page provides the datasheet information for the RS5MB, a member of the RS5AB Ultra-Fast Recovery Rectifier Diode family.

Datasheet Summary

Features

  • Idea for printed circuit board Glass passivated Junction chip Low reverse leakage High forward surge current capability.

📥 Download Datasheet

Datasheet preview – RS5MB

Datasheet Details

Part number RS5MB
Manufacturer Semiware
File Size 93.12 KB
Description Ultra-Fast Recovery Rectifier Diode
Datasheet download datasheet RS5MB Datasheet
Additional preview pages of the RS5MB datasheet.

📁 Similar Datasheet

  • RS5MB - FAST RECOVERY RECTIFIER (JIEJIE)
  • RS5MB - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • RS5MB - Surface Mount Fast Recovery Rectifiers (UNSEMI)
  • RS5MB - Surface Mount Fast Recovery Rectifiers (Tinysemi)
  • RS5MBF - 5.0Amp Fast Recovery Surface Mounted Rectifiers (Xirun)
  • RS5M - Surface Mount Rectifiers (LGE)
  • RS5M - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (SUNMATE)
  • RS5M - SURFACE MOUNT SUPER FAST RECTIFIER (Kingtronics)
  • RS5M - 5.0 AMP SURF ACE MOUNT FAST RECOVERY RECTIFIER (GW)
  • RS5M - Fast Recovery Rectifier Diodes (MLSM)
Other Datasheets by Semiware
  • RS5AB - Ultra-Fast Recovery Rectifier Diode
  • RS5BB - Ultra-Fast Recovery Rectifier Diode
  • RS5DB - Ultra-Fast Recovery Rectifier Diode
  • RS5GB - Ultra-Fast Recovery Rectifier Diode
  • RS5JB - Ultra-Fast Recovery Rectifier Diode
  • RS5KB - Ultra-Fast Recovery Rectifier Diode

Full PDF Text Transcription

Click to expand full text

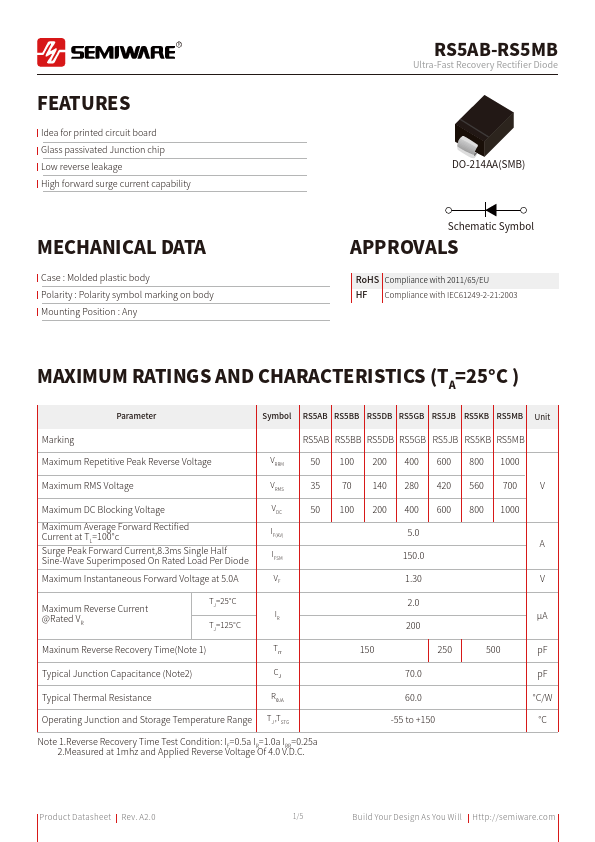

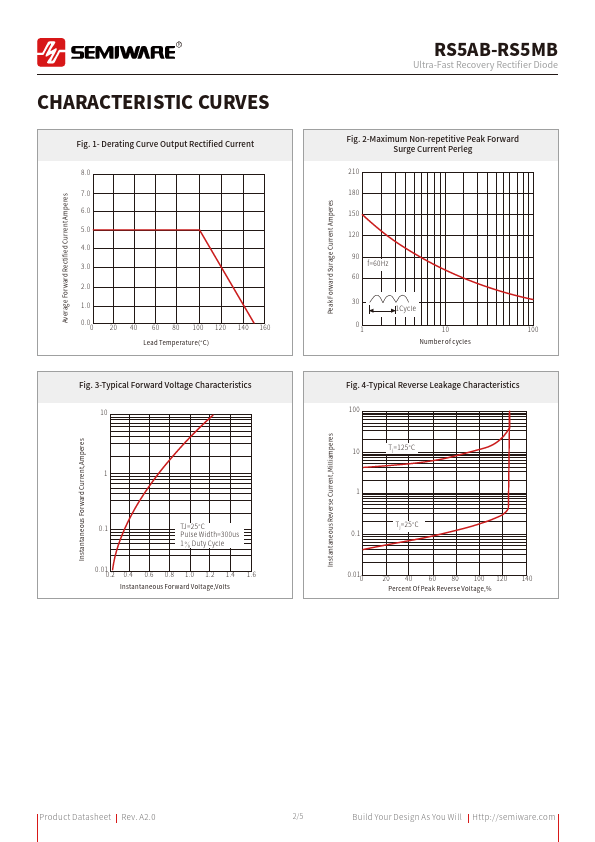

R FEATURES Idea for printed circuit board Glass passivated Junction chip Low reverse leakage High forward surge current capability MECHANICAL DATA Case : Molded plastic body Polarity : Polarity symbol marking on body Mounting Position : Any RS5AB-RS5MB Ultra-Fast Recovery Rectifier Diode DO-214AA(SMB) Schematic Symbol APPROVALS RoHS Compliance with 2011/65/EU HF Compliance with IEC61249-2-21:2003 MAXIMUM RATINGS AND CHARACTERISTICS (TA=25°C ) Parameter Symbol RS5AB RS5BB RS5DB RS5GB RS5JB RS5KB RS5MB Unit Marking RS5AB RS5BB RS5DB RS5GB RS5JB RS5KB RS5MB Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage VDC Maximum Average Forward Rectified Current at TL=100°c IF(AV) Surge
